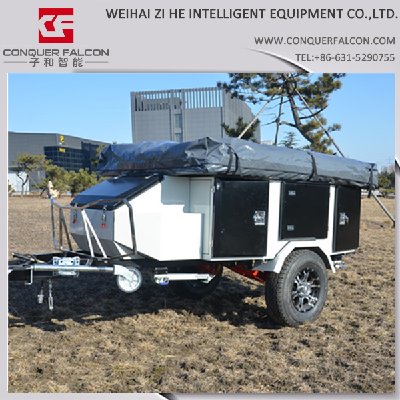

Technical

Overall size: 3570mm*1800mm

Box size: 1580mm*1440mm*670mm

Toolbox size: 800mm*600mm*650mm

Tare Mass: 680kg

Coupling strength: 2000kg

GVM: 1500kg



Chassis

Heavy duty off road galvanized chassis frame

Zinc-coated steel plate then powder coated or baked enamel

Integrated drawbar and chassis, fully welded

70*50*3mm Q345 RHS, 1920mm extended draw bar (excluding coupling) for easy corner turning and better stopping

Dual (not single) drawbar safety chains

8'' heavy duty solid jockey wheel

Four heavy duty lockable and adjustable drop-down stabilizer legs

15’’ alloy 6-stud Land Cruiser pattern rims and LT235/75R15 off road tyres, including spare

Spare tyre in the tyre rack under the trailer box



Suspension

Independent suspension with dual shock absorbers, trailing arms and coil springs

10" electric drum brake system and manual stainless steel cable brake



Kitchen

Deluxe slide out steel or stainless steel kitchen with large drawer above

Stainless steel sink with top quality tap

63L stainless steel water tank with electrical water pump and hand pump at the front

Lockable stainless steel water filler

2 x jerry can holder and 2 x gas bottle holder at each side

Large size toolbox at the trailer front

Large storage: fridge, generator box, tent accessories, battery and plenty of rooms for bags and baggage



Electric circuit

1x100A/H deep cycle battery

Anderson plug for battery charging from the tow vehicle

7 pin round plug for electric brake and direction lights

12V water pump to pump water to kitchen tap

Internal LED stripes with dual switches and cigarette sockets

Additional LED kitchen light

Modern design LED tail lights

LED number plate light

Overload protection

Water sensor and voltage meter

Solar power control panel (not including solar power board)



Internal

One queen size bed with high quality mattress cushion

One living room with PE floor



Tent

14OZ canvas, double stitched and extra water proof

Midge mesh screens and windows

Fully enclosed annex room with awning and side walls

Galvanized awning poles, pegs and ropes

Tent color is Grey but may vary from what you see from computers. Visit us to confirm.



Optional:

1.       Refrigerator

2.       Backup battery

3.       Generator

4.       Solar power system

5.       Inverter
